Barn Colors

Our Wall Finishes utilize 26 gauge pre-painted, embossed, laminated steel. Zincalume® is standard for the interior wall, and customer can pick exterior color. Available colors are shown below.


Our Roof and Wall Panels are coated with today’s most sustainable Energy Efficient, UV Resistant, and High Performance finishes.

IC72 Roofing (Standard)

IC72 Panel


  • Panel Type: Exposed fastener metal roofing or siding
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 36″
  • Metal Thickness (Gauge): 26
  • Optional Gauges: 24 ga., 22 ga. (Ask for color options)
  • Minimum Slope: 1:12
  • Orientation: Horizontal or Vertical
  • Paint System: PVDF/FEVE
  • Panel Attachment: Exposed Screw
  • Performance Certification: UL263 (Fire Resistance), UL 790 (Class A Fire Rated), ER 550 Building Code Evaluation Report
  • Panel Height: 1 1/2″
  • Rib Style: Trapezoidal

Roofing & Trim Colors

PBR Roofing (Option)

PBR Panel


  • Panel Type: Exposed fastener metal roofing or siding
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 36″
  • Metal Thickness (Gauge): 26
  • Optional Gauges: 24 ga., 22 ga. (Ask for color options)
  • Minimum Slope: 1:12
  • Orientation: Horizontal or Vertical
  • Paint System: PVDF/FEVE
  • Panel Attachment: Exposed Screw
  • Performance Certification: UL263 (Fire Resistance), UL 790 (Class A Fire Rated), ER 550 Building Code Evaluation Report
  • Panel Height: 1 1/4″
  • Rib Style: Traditional Ribbed

Roofing & Trim Colors

Reverse Box Rib Roofing (Upgrade)

Reverse Box Rib Panel


  • Panel Type: Exposed fastener metal siding
  • Standard Base Metal: Zincalume® Steel (AZ50)
  • Coverage: 36″
  • Metal Thickness (Gauge): 26
  • Optional Gauges: 24 ga., 22 ga. (Ask for color options)
  • Minimum Slope: 1:12
  • Paint System: Dura Tech™ nt (SMP – 26ga), Dura Tech™ 5000 / Dura Tech™ mx (PVDF – 24, 22ga)
  • Panel Attachment: Exposed Screw
  • Performance Certification: UL263 (Fire Resistance), UL 790 (Class A Fire Rated), ER 550 Building Code Evaluation Report
  • Panel Height: 1 1/2″
  • Rib Style: Box / Square

Roofing & Trim Colors

Fascia

Fascia


Fascia: Minimum 26 gauge 3-1/4” x 5-1/4” pre-painted steel.

Fascia Colors

Wall Colors

Interior/Exterior Wall Colors


Note: All other siding colors are stucco textured, except for Woodgrain.

Elite Series Powder Coating Option



Standard Powder Coating Option is Sand Texture Black. Options and upgrade colors are shown below.

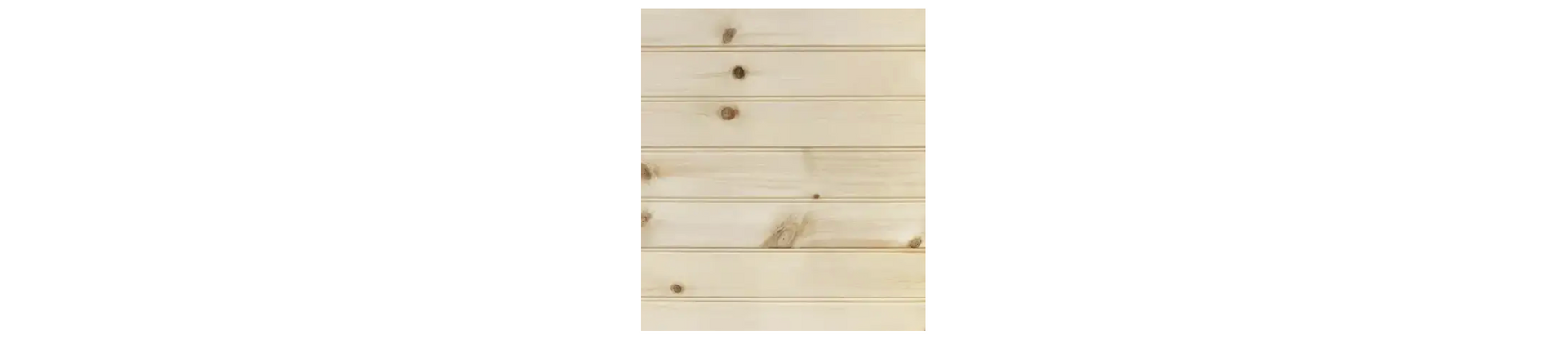

Tongue & Groove Wood Facing Options


Spruce
 Spruce Tongue & Groove (Example)

Color samples are close representations but are limited by processing and viewing conditions. Actual samples are available by request. For all information regarding these products, contact your dealer or sales representative.
